Description

Description:

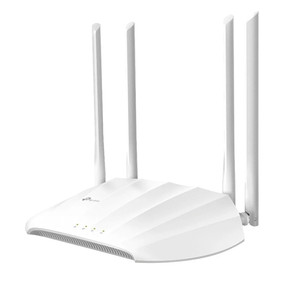

• Lightning-Fast AC1200 Dual Band Wi-Fi
• Upgrade your home or office network with the advanced 802.11ac Wave 2 AP, which offers dual-band speeds of up to 1200 Mbps—three times the performance of Wireless N. MU-MIMO technology enables the AP to serve multiple devices simultaneously without congestion or latency. All devices get their data faster and Wi-Fi is used more efficiently!
• Gigabit-Class Wired Performance
• The gigabit Ethernet port makes full use of gigabit-class bandwidth provided by a local ISP to ensure reliable network connections. It also provides an ultra-fast connection for wired devices such as PCs, IPTVs, and game consoles, etc.
• Deploy Anywhere with Just One Cable
• Power over Ethernet (PoE) allows your Ethernet cable to carry electrical power and data simultaneously, making deployment effortless and flexible. An elegant appearance and simple mounting design make it easy to attach the Access Point to any wall or desktop, blending in perfectly with most interior decoration.
• Specifications
• HARDWARE FEATURES
• Interface: 1× 10/100/1000 Mbps Ethernet Port
• (Supports Passive PoE)
• Button: Power On/Off Button, WPS Button, Reset Button
• External Power Supply: 12V/1.5A
• Wireless Standards: IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
• Dimensions ( W x D x H ): 8.9 × 5.7 × 1.5 in
• (225×145.5×37 mm)
• Antenna Type: 4 Fixed High Performance Antennas
• WIRELESS FEATURES
• Frequency: 2.4 GHz and 5 GHz
• Signal Rate: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
• Reception Sensitivity: 5 GHz:
• 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
• 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
• 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
• 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm
• 2.4 GHz
• 11g 54Mbps: -78 dBm
• 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
• 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm
• Transmit Power : < 30dBm
• Wireless Modes : Access Point, Range Extender, Client, Multi-SSID
• Wireless Functions: Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control
• Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions
• DHCP: Server, DHCP Client List
• Quality of Service: WMM
• Advanced Functions: Captive Portal
