Description
Description:

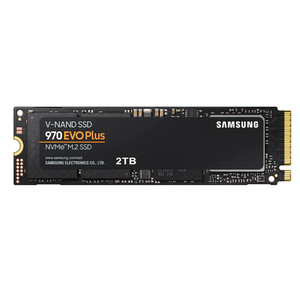

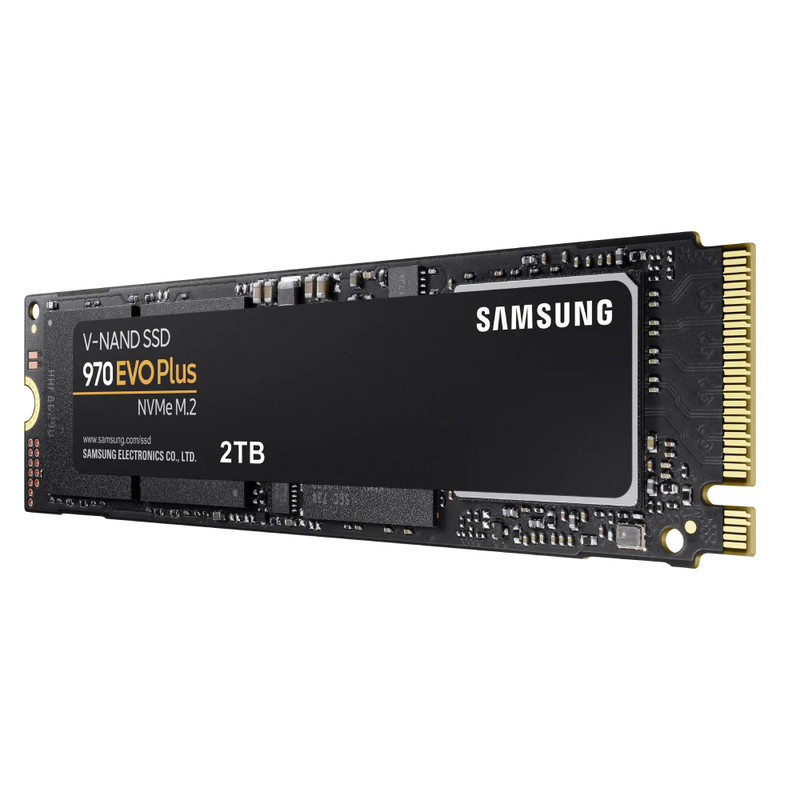

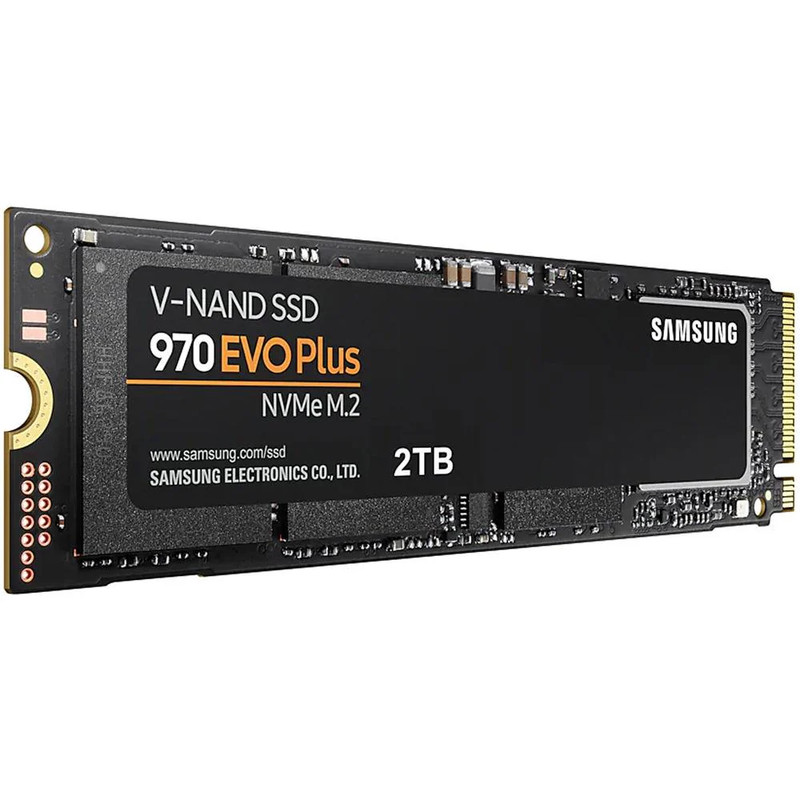

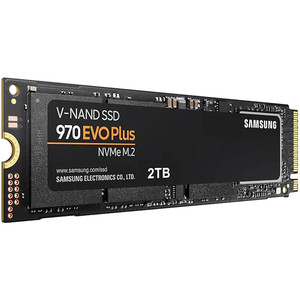

Built using their V-NAND 3-bit MLC flash technology for reliable performance, the 2TB 970 EVO Plus NVMe M.2 Internal SSD from Samsung offers enhanced bandwidth, low latency, and power efficiency. Designed for tech enthusiasts, high-end gamers, and 4K & 3D content designers, it delivers sequential read speeds of up to 3500 MB/s, sequential write speeds of up to 3200 MB/s, an endurance of up to 1200 TBW, up to 1.5 million hours MTBF, AES 256-bit encryption, and support for both SMART and TRIM. Moreover, it has an M.2 2280 form factor, which is compatible with a wide range of devices, and utilizes the PCIe 3.0 x4 interface. Download Samsung’s Smart Magician software to track your drive’s health, performance, and install new updates, while Samsung’s Dynamic Thermal Guard helps reduce the risk overheating to minimized performance drops.
General Features
Always Evolving SSD
Faster than the 970 EVO, the 970 EVO Plus is powered by the V-NAND technology and firmware optimization. It maximizes the potential of NVMe bandwidth for powerful computing with a reliability of 1200 TBW.
Level Up Performance
The EVO 970 Plus reaches sequential read speeds of up to 3500 MB/s and sequential write speeds of up to 3200 MB/s.Powered by V-NAND technology, which improves NAND performance and delivers higher power efficiency, along with optimized firmware, a Phoenix controller, and Intelligent TurboWrite boost speed.
Design Flexibility
The 970 EVO Plus fits 2TB onto the compact M.2 2280 form factor, greatly expanding storage capacity and saving space for other components. Samsung’s technology empowers you with the capacity to do more and accomplish more.
Endurance
Get up to 1200 TBW with a limited 5-year limited for lasting performance. The 970 EVO Plus provides endurance powered by V-NAND technology and Samsung’s quality.
Reliability
Samsung’s nickel-coated controller and heat spreader on the 970 EVO Plus enable improved heat dissipation. The Dynamic Thermal Guard automatically monitors and maintains proper operating temperatures to minimize performance drops.
Samsung Magician
The Samsung Magician software will help you keep an eye on your drive. A suite of user-friendly tools helps keep your drive up to date, monitor drive health and speed, and even boost performance.
SPECIFICATIONS
| Brand | SAMSUNG |
| Series | 970 EVO PLUS |
| Model | MZ-V7S2T0B/AM |
| Device Type | Internal Solid State Drive (SSD) |
| Used For | Consumer |
| Form Factor | M.2 2280 |
| Capacity | 2TB |
| Memory Components | Samsung V-NAND 3-bit MLC |
| Interface | PCIe Gen 3.0 x4, NVMe 1.3 |
| Controller | Samsung Phoenix Controller |
| Cache | Samsung 1GB Low Power DDR4 SDRAM |
| Max Sequential Read | Up to 3500 MBps |
| Max Sequential Write | Up to 3300 MBps |
| 4KB Random Read | 4KB, QD32: Up to 620,000 IOPS |
| 4KB, QD1: Up to 19,000 IOPS | |
| 4KB Random Write | 4KB, QD32: Up to 560,000 IOPS |
| 4KB, QD1: Up to 62,000 IOPS | |
| MTBF | 1,500,000 hours |
| Features | Reliability: 1200 TBW |
| Power Consumption (Idle) | Max. 30 mW |
| Power Consumption (Active) | Average: 6W |
| Maximum: 9W (Burst mode) | |
| Operating Temperature | 0°C ~ +70°C |
| Max Shock Resistance | 1,500G & 0.5 ms (Half sine) |
| Height | 2.38mm |
| Width | 22.15mm |
| Depth | 80.15mm |
| Weight | 8.00g |
