Description:

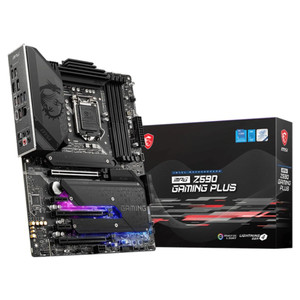

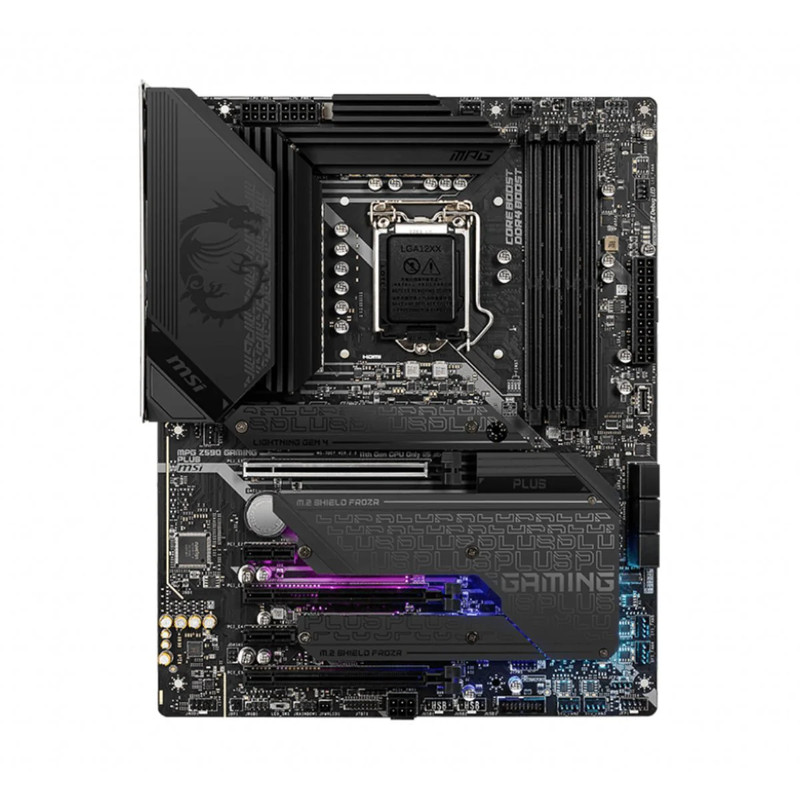

Dive into the world of gaming with the MPG Z590 GAMING PLUS LGA 1200 ATX Motherboard from MSI. Designed to utilize high-end gaming components, the MPG Z590 offers vast connectivity options from the internal fan- and liquid-cooling headers to expansion slots, making this ideal for any gamer.
Built on the Z590 chipset while offering an LGA 1200 socket, you can leverage the power of Intel 11th Gen processors, giving you access to enhanced speeds in conjunction with four dual-channel DDR4 RAM slots, six SATA III ports, and three M.2 interfaces. One PCIe 4.0 x16, two PCIe 3.0 x16, and two PCIe 3.0 x1 slots allow you to install a wide range of graphics and utility cards, expanding the capabilities of your system with ease. The MPG Z590 gives you access to USB 3.2 Gen 1 and Gen 2 Type-A ports and one USB 3.2 Gen 2×2 Type-C port, enabling you to connect a wide range of resource-demanding peripherals like cameras, USB microphones, and audio interfaces. Connect to your wired network and experience quick upload and download speeds with a 2.5 Gigabit LAN port. This motherboard is only compatible with Windows 10 (64-bit) operating systems.
Thermal Solutions
The MPG Z590 enables you to install fan- or liquid-cooling systems, allowing you to choose a thermal solution that best fits your custom build. An extended heatsink covers essential components and the signature M.2 Shield Frozr keeps your NVMe solid-state drive cool under heavy loads. Frozr AI Cooling automatically detects temperatures across your components and adjusts to meet thermal performance with performance, silent, and manual modes. Fully Fan Control enables you to manually adjust parameters while feeding you information in real-time for proper monitoring.
Power Design
Leveraging a 14+1+1 Duet Rail Power System, the MPG Z590 can deliver ample power while maintaining electrical load for optimal efficiency. Core Boost technology directs power to the CPU quicker, creating proper conditions suitable for overclocking which can be accessed with Game Boost software. Load-line calibration, overvoltage protection, digital power design, supplemental PCIe power connector, and double 8-pin power connectors all work together to provide additional operational enhancements essential for high-end gaming.
DIY Friendly Design
Whether you are a seasoned or amateur builder, the MPG Z590 is designed for simplicity and durability, giving you everything you need to put together a gaming-optimized PC. A pre-installed I/O shield makes installation easier, while the keep-out zone protects onboard circuitry from contacting case standoffs. The included screwdrivers, USB drive, and cleaning brush allow you to easily install and maintain the look of your MPG Z590. Battery sticker, cable labels, and case badge offer a level of customization and organization to your build. An enlarged XL PCIe clip assists in card swapping for stronger support. Additionally, an EZ debug LED system tells you if components are experiencing any issues, reducing time spent on troubleshooting. An EZ LED switch allows you to quickly turn your lighting effects on or off.
Power Protection
Sporting a 2oz thickened copper 6-layer printed circuit board, you get improved heat dissipation and enhanced performance reliability for standard and overclocked modes. PCIe Steel Armor slots add a layer of steel to enhance the durability of your slot, enabling it to withstand the weight of heavy graphics and utility cards. Double ESD protection prevents shorts by adding another grounding layer to mounting holes. The overall build of the MPG Z590 makes it certified for gaming, ensuring your motherboard can handle fast-paced titles.
Performance Enhancements
DDR4 Boost and XMP capabilities ensure optimal performance with a wide range of memory manufacturers, ensuring proper configurations whether you are in overclocked or standard modes. MSI’s Lightning Gen 4 connectivity protocol enables enhanced speeds up to 64 Gb/s for PCIe slots and M.2 interfaces when the MPG Z590 is paired with an 11th Gen Intel processor. Intel Optane support is also available, enabling you to install compatible M.2 devices to enhance the speed of your hard-disk drives. Resizable BAR enables the CPU to access the entire GPU frame buffer at once to improve performance while you game.
Connectivity
Connect to your network via 2.5 Gigabit LAN providing enhanced transfer speeds ideal for gaming or enjoying your favorite media. LAN Manager automatically prioritizes games above other applications, allows you to change traffic priority, and enables custom bandwidth for each application for low-latency gaming. A USB 3.2 Gen 2×2 Type-C port offers transfer speeds up to 20 Gb/s, allowing you to take advantage of high-powered peripherals such as audio and video interfaces. A front-end USB 3.2 Gen 2 Type-C connector gives you instant access to quick downloads and fast mobile device charging.
High-End Audio
Immerse yourself deep into your virtual worlds with high-definition audio delivered by a Realtek ALC4080 dedicated audio processor, high-quality audio capacitors, five 3.5mm audio jacks, one S/PDIF-out, and a dedicated audio amplifier. The isolated audio design separates the audio traces from the rest of the board components that reduces electrical crosstalk. Separated audio layers provide clean left and right channels with a dedicated PCB design. MSI Sound Tune leverages an AI-powered noise-cancellation technology that automatically recognizes and separates vocal sound from background noises for clear team chatting. De-pop protection reduces the popping sound when connecting and disconnecting your headphones.
BIOS & Software
Adjust various system parameters with MSI Center, a suite of software utilities that are centralized to give you quick access to advanced motherboard features. True color, live update, user scenario, hardware monitor, OC setting, total fan control, mystic light, and product registration all work together to streamline operations and simplify your overall experience.
Mystic Light Headers
Add a layer of personality to your build with MSI’s Mystic Light software, giving you a choice from 16.8-million colors and 29 LED effects, enabling you to explore your creativity and make a unified aesthetic.
Specifications
CPU
| Chipset | Intel Z590 |
| CPU Socket | LGA 1200 |

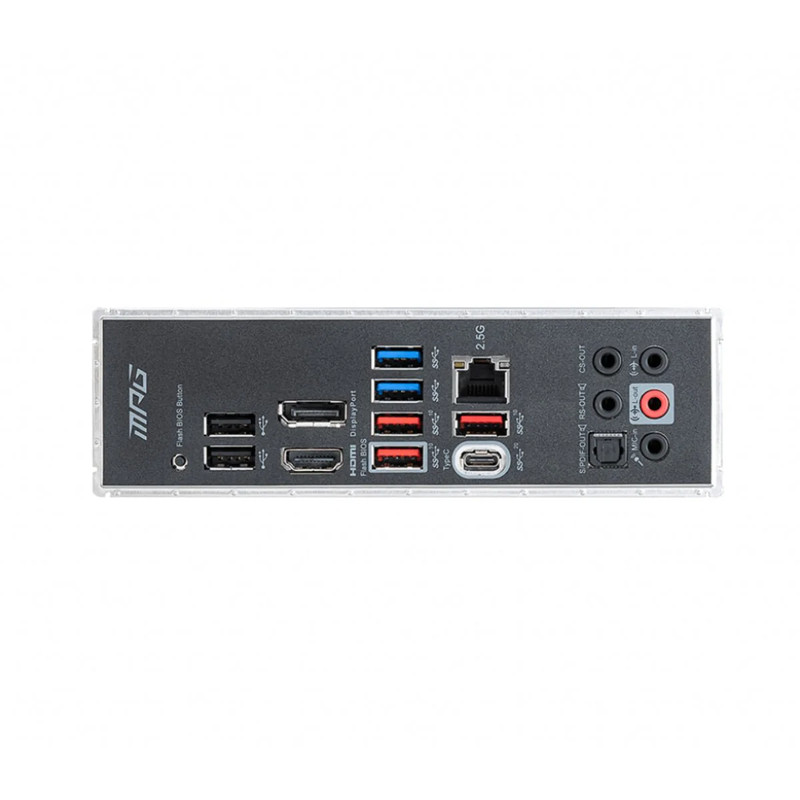

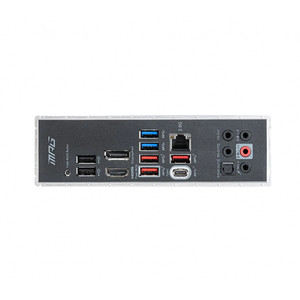

Back Panel I/O
| USB | 2 x USB 3.1 / USB 3.2 Gen 1 Type-A 3 x USB 3.1 / USB 3.2 Gen 2 Type-A 1 x USB 3.2 Gen 2×2 Type-C 2 x USB 2.0 Type-A |
| Display | 1 x DisplayPort 1 x HDMI |
| Audio | 5 x 3.5 mm 1 x S/PDIF |
| Ethernet / Controller | 1 x Intel I225V 2.5Gigabit |
| Buttons | BIOS Flashback |
Memory
| Memory Slots | 4 x 288-Pin |
| Memory Support | DDR4 2133, 2666, 2933, 3200 MHz |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
Storage Expansion
| SATA | 6 x SATA III |
| M.2 | 1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 2 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) |
| Optane Memory Support | Yes |
| RAID Support | RAID 0, 1, 5, 10 (SATA) RAID 0, 1, 5 (M.2) |
Internal I/O
| Expansion Slots | 1 x PCIe 4.0 x16 2 x PCIe 3.0 x16 2 x PCIe 3.0 x1 |
| USB | 1 x USB 3.1 / USB 3.2 Gen 2 Header (Supports 1 USB Type-C Port) 1 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 2 USB Type-A Port) 2 x USB 2.0 Header (Supports 4 USB Type-A Port) |
| Air Cooling | 1 x 4-Pin CPU 6 x 4-Pin System |
| Liquid Cooling | 1 x 4-Pin Pump |
| Power Connectors | 1 x 24-Pin Mainboard 2 x 8-Pin ATX 1 x 6-Pin VGA |
| Security | Chassis Intrusion, TPM Header |
| LED Header | 4 x RGB |
| Diagnostics | Clear CMOS |
| Add-On | 1 x Thunderbolt Card Header |
Front Panel I/O
| I/O Connection Headers | AAFP, USB 3.1 / USB 3.2 Gen 1, USB 3.1 / USB 3.2 Gen 2 |
Audio
| Audio Codec | Realtek ALC4080 (7.1-Channel) |
Software
| Supported Operating Systems | Windows 10 (64-Bit) |
Physical
| Form Factor | ATX |
| Dimensions | 9.6 x 12″ / 24.4 x 30.5 cm |
