| PRODUCT NAME |
LIAN LI V3000 PLUS |
| MODEL |
V3000PX |
| DIMENSIONS |
678.5 x 279 x 674mm |
| COLOR |
White
|
| MATERIALS |
Aluminum |
| Steel |
| 4.0mm Dark Tinted Tempered Glass (right side) |
| 4.0mm Tinted Tempered Glass (left side) |
| MOTHERBOARD SUPPORT |
Standard |
| EEB/E-ATX/ATX/Micro-ATX/Mini-ITX |
| Rotated |
| EEB/E-ATX/ATX/Micro-ATX/Mini-ITX |
| Dual System |
| System 1 – EEB/E-ATX/ATX/Micro-ATX/Mini-ITX |
| System 2 – Mini-ITX |
| FAN SUPPORT |
Standard |
| Front：4 x 120mm or 3 x 140mm |
| Top：4 x 120mm or 3 x 140mm or 2 x 200mm |
| Above PSU Chamber：3 x 120mm or 3 x 140mm |
| Bottom side：4 x 120mm or 3 x 140mm |
| Rear: 1 x 120mm or 1 x 140mm |
| Rotated |
| Front：4 x 120mm or 3 x 140mm |
| Top：4 x 120mm or 3 x 140mm or 2 x 200mm |
| Bottom side：4 x 120mm or 3 x 140mm |
| Rear: 3 x 120mm or 2 x 140mm |
| Above PSU Chamber: 1 x 120mm or 1 x 140mm |
| Dual System |
| Front：4 x 120mm or 3 x 140mm |
| Top：4 x 120mm or 3 x 140mm or 2 x 200mm |
| Above PSU Chamber：2 x 120mm or 2 x 140mm |
| Bottom side：4 x 120mm or 3 x 140mm (without System 2 GPU) |
| Rear: 1 x 120mm or 1 x 140mm |
| RADIATOR SUPPORT |
Standard |
| Front：480mm or 420mm |
| Top：480mm or 420mm |
| Above PSU Chamber：360mm or 420mm |
| Bottom side：480mm or 420mm |
| Rotated |
| Front：480mm or 420mm |
| Top：480mm or 420mm |
| Bottom side：480mm or 420mm |
| Rear: 360mm or 280mm |
| Dual System |
| Front：480mm or 420mm |
| Top：480mm |
| Above PSU Chamber：240mm or 280mm |
| Bottom side：480mm or 420mm (without System 2 GPU) |
| PSU SUPPORT |
System 1 – ATX (Max 220mm) |
| System 2 – SFX-L/SFX |
| GPU LENGTH CLEARANCE |
Standard |
| Max 589mm |
| Rotated |
| Max 358mm |
| Dual System |
| System 1 – Max 589mm |
| System 2 – Max 320mm (Width max 125mm) |
| CPU COOLER HEIGHT CLEARANCE |
System 1 – Max 198mm |
| System 2 – Max 80mm |
| DRIVE SUPPORT |
Drive Cage：8 × 2.5” SSD or 8 × 3.5” HDD |
| Side：4 × 2.5” SSD |
| Behind MB tray: 4 × 2.5” SSD |
| EXPANSION SLOT |
System 1 – 8 |
| System 2 – 3 (at PSU shroud, with optional riser cable) |

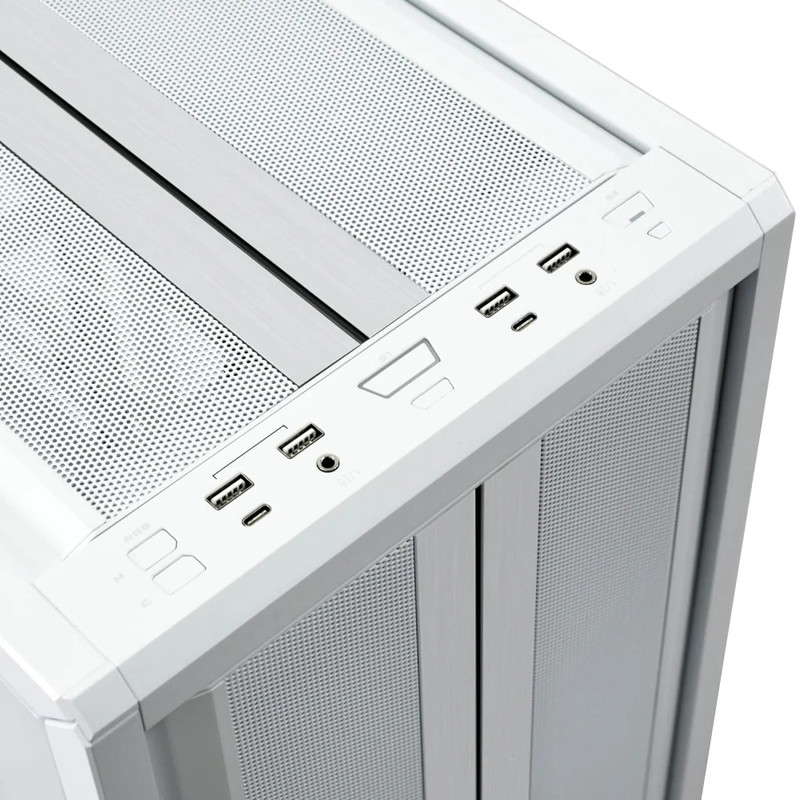

| I/O PORTS |
System 1 |
| 1 x Power Button |
| 1 x Reset Button |
| 1 x Light Color Button (C) |
| 1 x Light Mode Button (M) |
| 2 x USB 3.0 |
| 1 x USB Type C |
| 1 x Audio |
| System 2 |
| 1 x Power Button |
| 1 x Reset Button |
| 2 x USB 3.0 |
| 1 x USB Type C |
| 1 x Audio |
