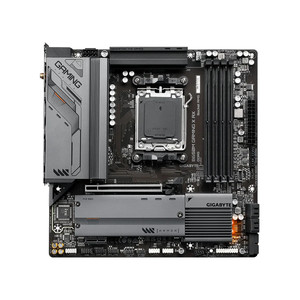

Name: Gigabyte B650M Gaming X AX WiFi DDR5 AM5 AMD Micro ATX Gaming Motherboard - اللوحة الأم
SKU: 1031212299583
Availability: InStock

Description

CPU	AMD Ryzen™ 7000 Series Processors
Socket	AMD Socket AM5

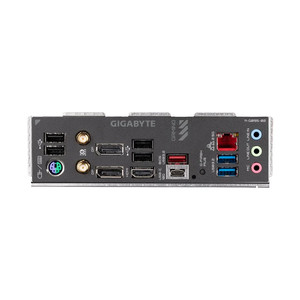

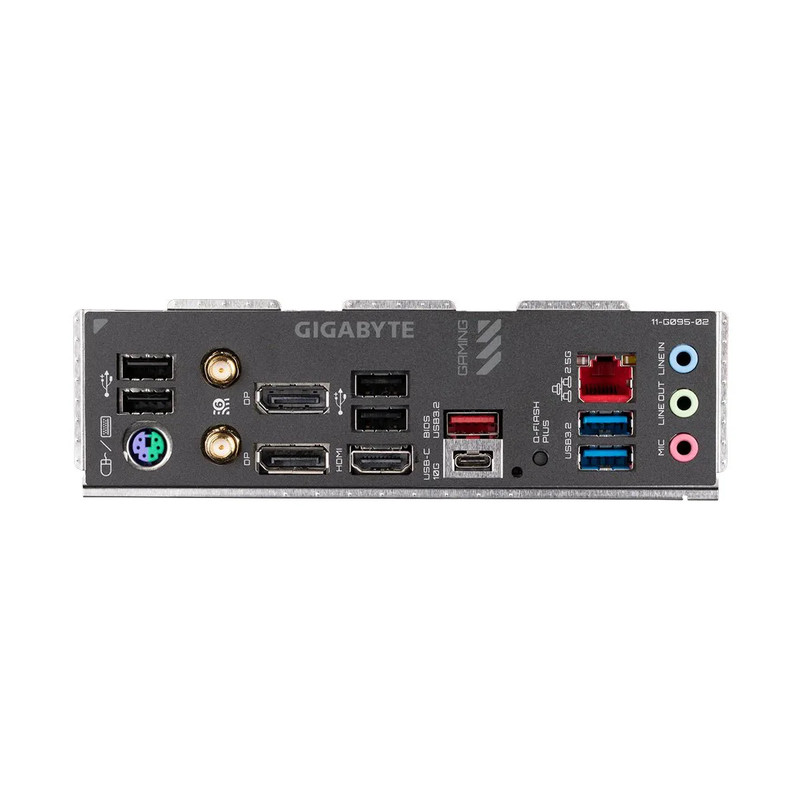

Back Panel I/O	4 x USB 2.0/1.1 ports
	1 x PS/2 keyboard/mouse port
	2 x SMA antenna connectors (2T2R)
	2 x DisplayPort
	1 x HDMI port
	1 x USB 3.2 Gen 2 Type-A port (red)
	1 x USB Type-C^® port, with USB 3.2 Gen 2 support
	1 x RJ-45 port
	1 x Q-Flash Plus button
	3 x audio jacks
	2 x USB 3.2 Gen 1 ports
Memory Slots	4
Storage Expansion	2 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	4 x SATA 6Gb/s connectors
Internal I/O	1 x 24-pin ATX main power connector
	1 x 8-pin ATX 12V power connector
	1 x CPU fan header
	3 x system fan headers
	1 x addressable LED strip header
	1 x RGB LED strip header
	2 x M.2 Socket 3 connectors
	4 x SATA 6Gb/s connectors
	1 x front panel header
	1 x front panel audio header
	1 x USB Type-C® header, with USB 3.2 Gen 2 support
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x USB 3.2 Gen 1 header
	2 x USB 2.0/1.1 headers
	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	1 x serial port header
	1 x reset button
	1 x reset jumper
	1 x Clear CMOS jumper
Audio	Realtek® Audio CODEC
	High Definition Audio
	2/4/5.1/7.1-channel
Wireless	AMD Wi-Fi 6E RZ616
Software	Windows 11
Dimensions	Micro ATX Form Factor; 24.4cm x 24.4cm
