Description

Description:

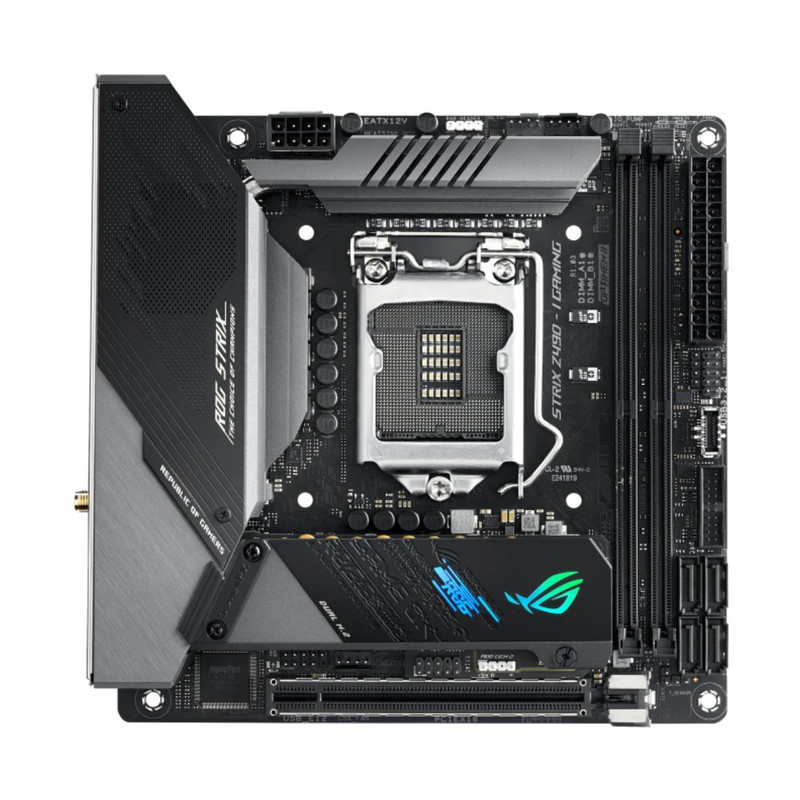

• Product Name:ASUS ROG STRIX Z490-I GAMING (Socket 1200/Z490/DDR4/S-ATA 600/Mini ITX)
• BIOS:
  • 256 Mb Flash ROM
  • UEFI AMI BIOS
• Chipset:Intel Z490
• CPU Interface:Socket 1200
• CPU Support:https://www.asus.com/uk/Motherboards/ROG-STRIX-Z490-I-GAMING/HelpDesk_CPU/
• RAM Technology:DDR4 (Dual Channel)
• RAM Slots:2 x 288-pin
• RAM Speeds:Up to DDR4 4800 (O.C.)
• Max. Memory Support:64GB
• PCI Express 3.0 x16:1
• S-ATA III Port(s):4
• RAID:Raid 0/1/5/10
• M.2 Socket(s):2
• On-Board LAN:Intel I225-V 2.5Gb Ethernet
• Wireless NIC:Wi-Fi 6
• Wireless Technology:
  • 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
  • Supports up to 2.4Gbps max data rate
  • Supports dual band frequency 2.4/5 GHz
  • Supports channel bandwidth: HT20/HT40/HT80/HT160
  • Supports CNVI interfac
• Bluetooth:v5.1
• On-Board Audio:ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
• On-Board Video:Intel processor with integrated graphics is required

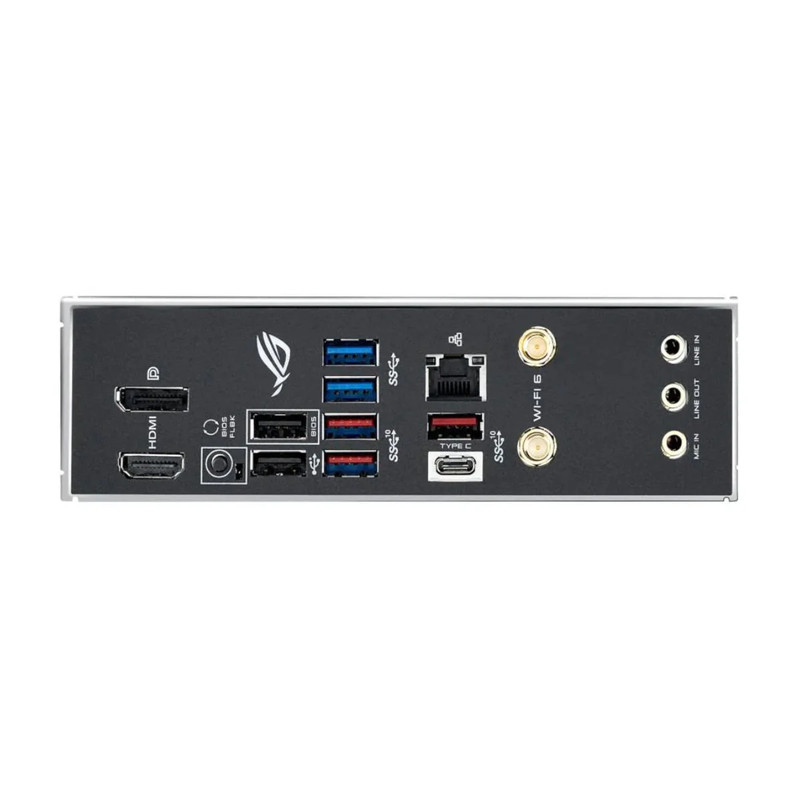

• Back USB 2.0 Port(s):2
• Back USB 3.2 Port(s) Type-A Gen 1:2
• Back USB 3.2 Port(s) Type-A Gen 2:3
• Back USB 3.2 Port(s) Type-C Gen 2:1
• Back HDMI Port(s):1
• Back DisplayPort(s):1
• Back LAN Port(s):1
• Back Audio Jack(s):3
• Back Button(s):1 x USB BIOS FlashBack
• 24-pin ATX Power:1
• 8-pin ATX Power:1
• USB 2.0 Header(s):1
• USB 3.2 Header(s) Gen 1:1
• USB 3.2 Header(s) Gen 2:1
• Front Panel Audio Connector:1
• Internal Other Port(s):
  • 1 x Aura RGB Strip Header
  • 1 x Addressable Gen 2 Header
  • 1 x Thermal Sensor Connector
• Form Factor:Mini ITX
• Product Width:170mm
• Product Length:170mm
• Package Width:18.5cm
• Package Length:23cm
• Package Height:10cm
• Gross Weight:1.33Kg
• Special Features:
  • Intel LGA 1200 socket: Ready for 10th Gen Intel Core processors.
  • Optimal Power Solution: 8+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors.
  • Optimised Thermal Design: Embedded custom Delta superflo fan, MOS heatsink with L-shaped heatpipe, and Triple-decker Heatsink for improved cooling.
  • High-performance Networking: On-board Intel WiFi 6 AX201 (802.11 ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard.
  • Best Gaming Connectivity: Supports HDMI TM 2.0a and DisplayPort 1.4, and featuring USB 3.2 Gen 2 Type-A and Type-C connectors.
  • Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling and AI Networking, helping you configure your gaming build easily.
  • DIY Friendly Design: Pre-mounted I/O shield, BIOS FlashBackTM, Q-LEDs and SafeSlot.
  • Unmatched Personalisation: ASUS-exclusive Aura Sync RGB lighting, including RGB header and Gen 2 addressable header.
  • Industry-leading Gaming Audio: High fidelity audio with SupremeFX S1220A, DTS Sound Unbound and Sonic Studio III to draw you deeper into the action.

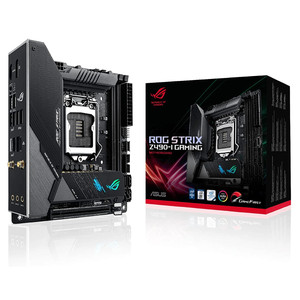

• Package Contents:
  • Motherboard
  • Manual
  • 4 x SATA 6Gb/s Cables
  • 2 x M.2 Screw Package
  • 1 x Supporting Disk
  • 1 x Cable Tie Black
  • 1 x ROG Strix Stickers
  • 1 x Extension Cable for Addressable LED
  • 1 x Panel Cable
  • 1 x ROG Thank you card
  • 1 x Wi-Fi Moving Antenna
  • 1 ROG Key Chain
