| CPU |
AMD |
| Socket |
AM5 |

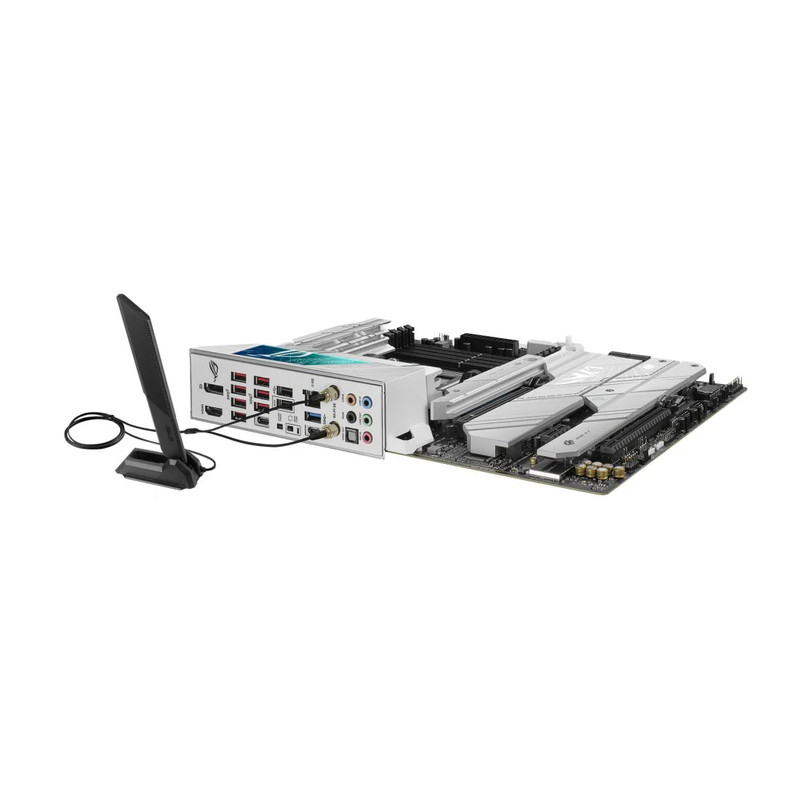

| Back Panel I/O |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| |
8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®) |
| |
1 x USB 3.2 Gen 1 port (1 x Type-A) |
| |
2 x USB 2.0 ports (2 x Type-A) |
| |
1 x DisplayPort |
| |
1 x HDMI® port |
| |
1 x Wi-Fi Module |
| |
1 x Intel® I225-V 2.5Gb Ethernet port |
| |
5 x Audio jacks |
| |
1 x Optical S/PDIF out port |
| |
1 x BIOS FlashBack™ button |
| |
1 x Clear CMOS button |
| Memory Slots |
4 |
| Storage Expansion |
4 x M.2 slots and 4 x SATA 6Gb/s ports |
| Internal I/O |
Fan and Cooling related |
| |
1 x 4-pin CPU Fan header |
| |
1 x 4-pin CPU OPT Fan header |
| |
1 x 4-pin AIO Pump header |
| |
5 x 4-pin Chassis Fan headers |
| |
Power related |
| |
1 x 24-pin Main Power connector |
| |
2 x 8-pin +12V Power connector |
| |
Storage related |
| |
4 x M.2 slots (Key M) |
| |
4 x SATA 6Gb/s ports |
| |
USB |
| |
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® ) |
| |
1 x USB 3.2 Gen 1 header supports additional |
| |
2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| |
Miscellaneous |
| |
3 x Addressable Gen 2 headers |
| |
1 x Aura RGB header |
| |
1 x CPU Over Voltage jumper |
| |
1 x Front Panel Audio header (AAFP) |
| |
1 x 20-3 pin System Panel header with Chassis intrude function |
| |
1 x Thermal Sensor header |
| |
1 x Thunderbolt™ header |
| Front Panel I/O |
|
| |
Rear USB (Total 12 ports) |
| |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) |
| |
8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) |
| |
1 x USB 3.2 Gen 1 port (1 x Type-A) |
| |
2 x USB 2.0 ports (2 x Type-A) |
| |
Front USB (Total 7 ports) |
| |
1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® ) |
| |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Wireless |
Wi-Fi 6E |
| |
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) |
| |
Supports 2.4/5/6GHz frequency band* |
| |
Bluetooth v5.2 |
| Software |
Windows® 11, Windows® 10 64-bit |
| Dimensions |
ATX |
|
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
