| CPU |
Intel |
| Socket |
LGA1700 |

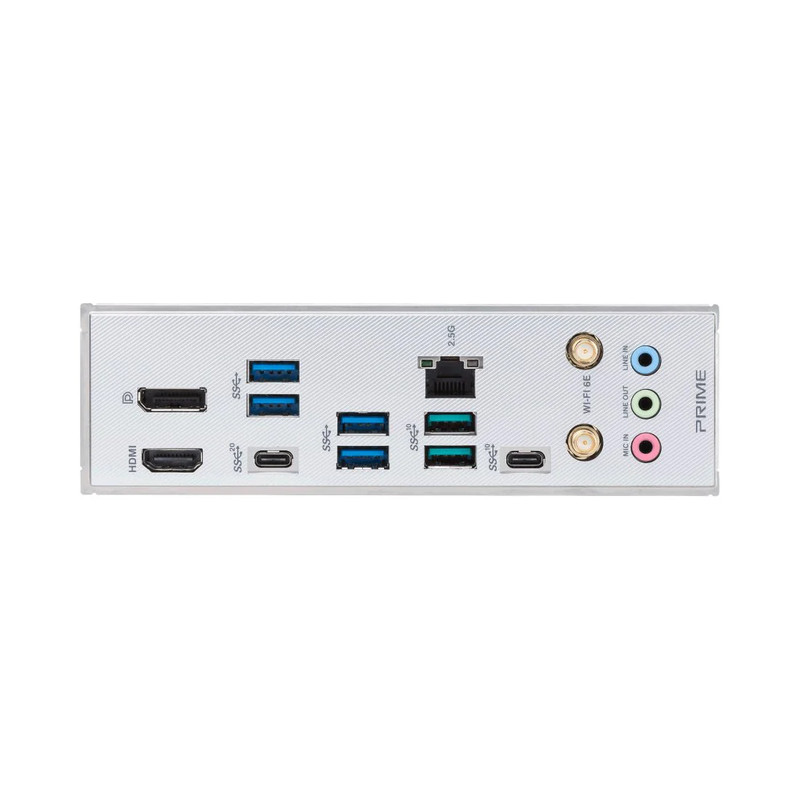

| Back Panel I/O |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) |
| |
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x Type-C) |
| |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| |
1 x DisplayPort |
| |
1 x HDMI® port |
| |
1 x Wi-Fi Module |
| |
1 x Intel 2.5Gb Ethernet port |
| |
3 x Audio jacks |
| Memory Slots |
4 |
| Storage Expansion |
4 x M.2 slots and 4 x SATA 6Gb/s ports |
| Internal I/O |
Fan and Cooling related |
| |
1 x 4-pin CPU Fan header |
| |
1 x 4-pin CPU OPT Fan header |
| |
1 x 4-pin AIO Pump header |
| |
4 x 4-pin Chassis Fan headers |
| |
Power related |
| |
1 x 24-pin Main Power connector |
| |
2 x 8-pin +12V Power connectors |
| |
Storage related |
| |
4 x M.2 slots (Key M) |
| |
4 x SATA 6Gb/s ports |
| |
USB |
| |
1 x USB 3.2 Gen 2 connector (supports USB Type-C ) |
| |
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports |
| |
2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| |
Miscellaneous |
| |
3 x Addressable Gen 2 headers |
| |
1 x Aura RGB header |
| |
1 x Clear CMOS header |
| |
1 x COM Port header |
| |
1 x CPU Over Voltage jumper |
| |
1 x Front Panel Audio header (AAFP) |
| |
1 x Power button |
| |
1 x SPI TPM header (14-1pin) |
| |
1 x 20-3 pin System Panel header with Chassis intrude function |
| |
1 x Thunderbolt header |
| Front Panel I/O |
Rear USB (Total 8 ports) |
| |
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C) |
| |
3 x USB 3.2 Gen 2 ports (2 x Type-A, 1 x USB Type-C) |
| |
4 x USB 3.2 Gen 1 ports (4 x Type-A) |
| |
Front USB (Total 7 ports) |
| |
1 x USB 3.2 Gen 2 connector (supports USB Type-C) |
| |
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports |
| |
2 x USB 2.0 headers support additional 4 USB 2.0 ports |
| Audio |
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| Wireless |
Wi-Fi 6E |
| |
Bluetooth v5.3 |
| Software |
Windows 11 |
| Dimensions |
ATX |
