Description
Description:

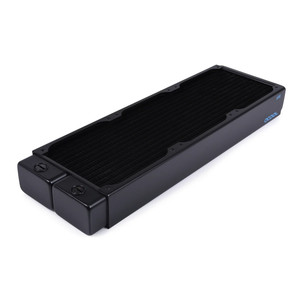

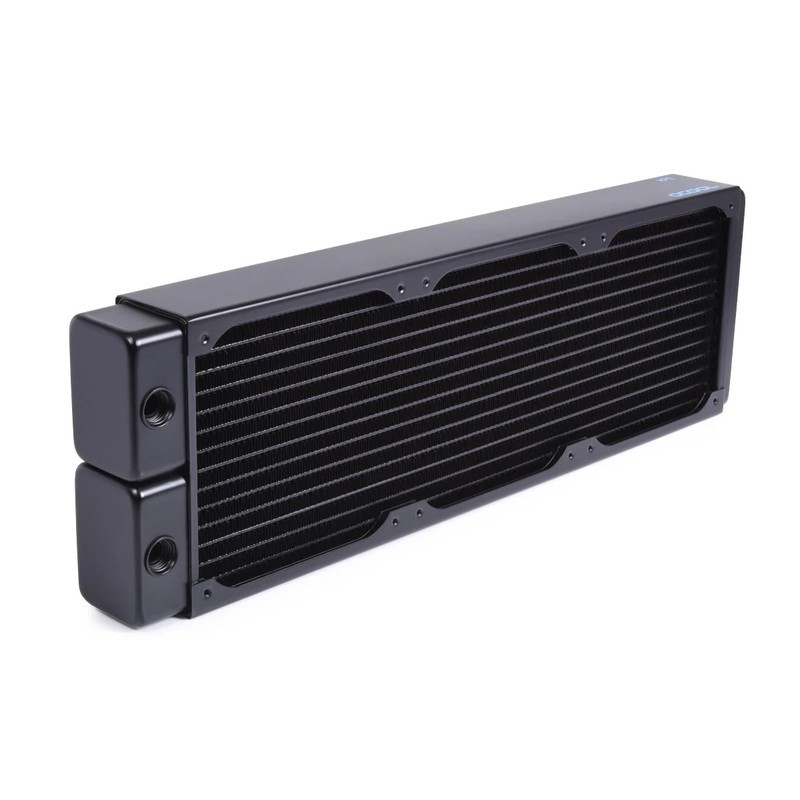

| L x W x H | 391,5 x 124 x 45mm (+/- 3%) |
| Material cooling fins, pre-chambers & channels | copper |
| Material threads | brass |
| Material outer housing | stainless steel |
| Threads | 4x G1/4″ IN/OUT & 1x Fill-/ Drain port G1/4″ (max. 5mm thread length) |
| Possible fan size | 120mm |
| Possible fan assembly | 3x one-sided / 6x both-sided |

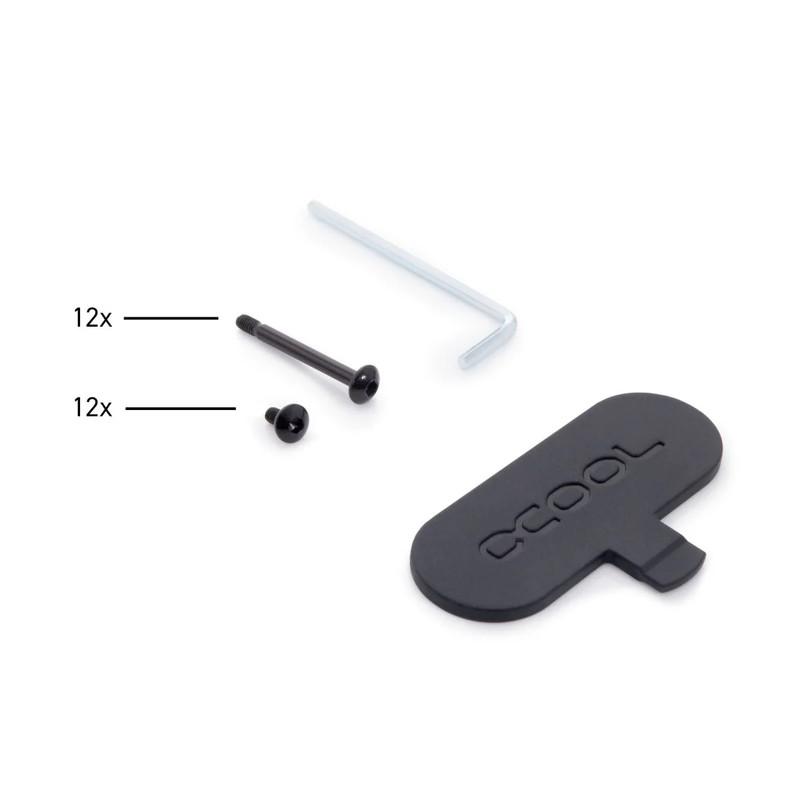

| Thread size fan mounting | M3 |
| Pressure tested | 0,8 Bar |
| Maximum working temperature | 60°C |
| Fin density | 16 FPI |
